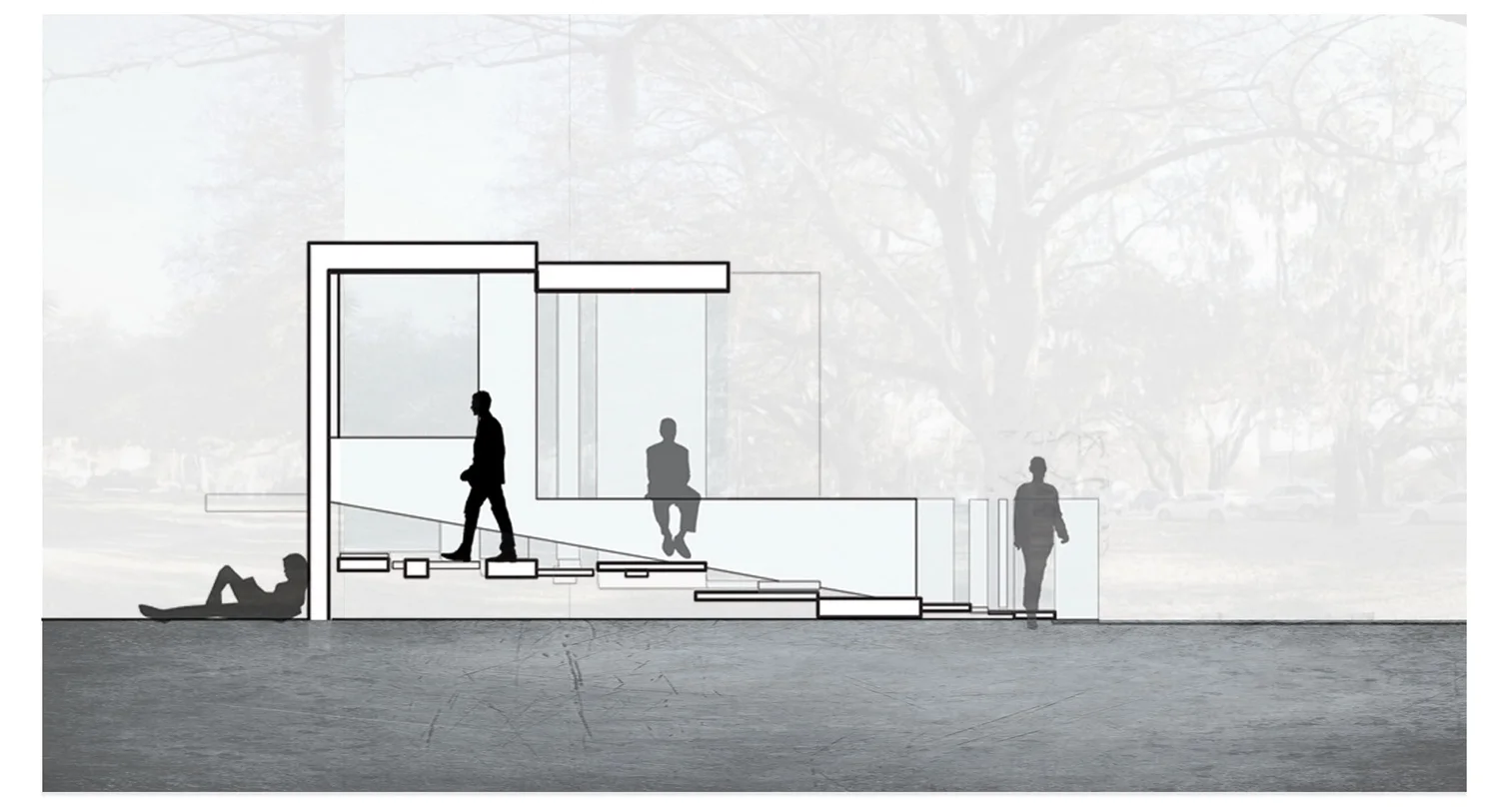

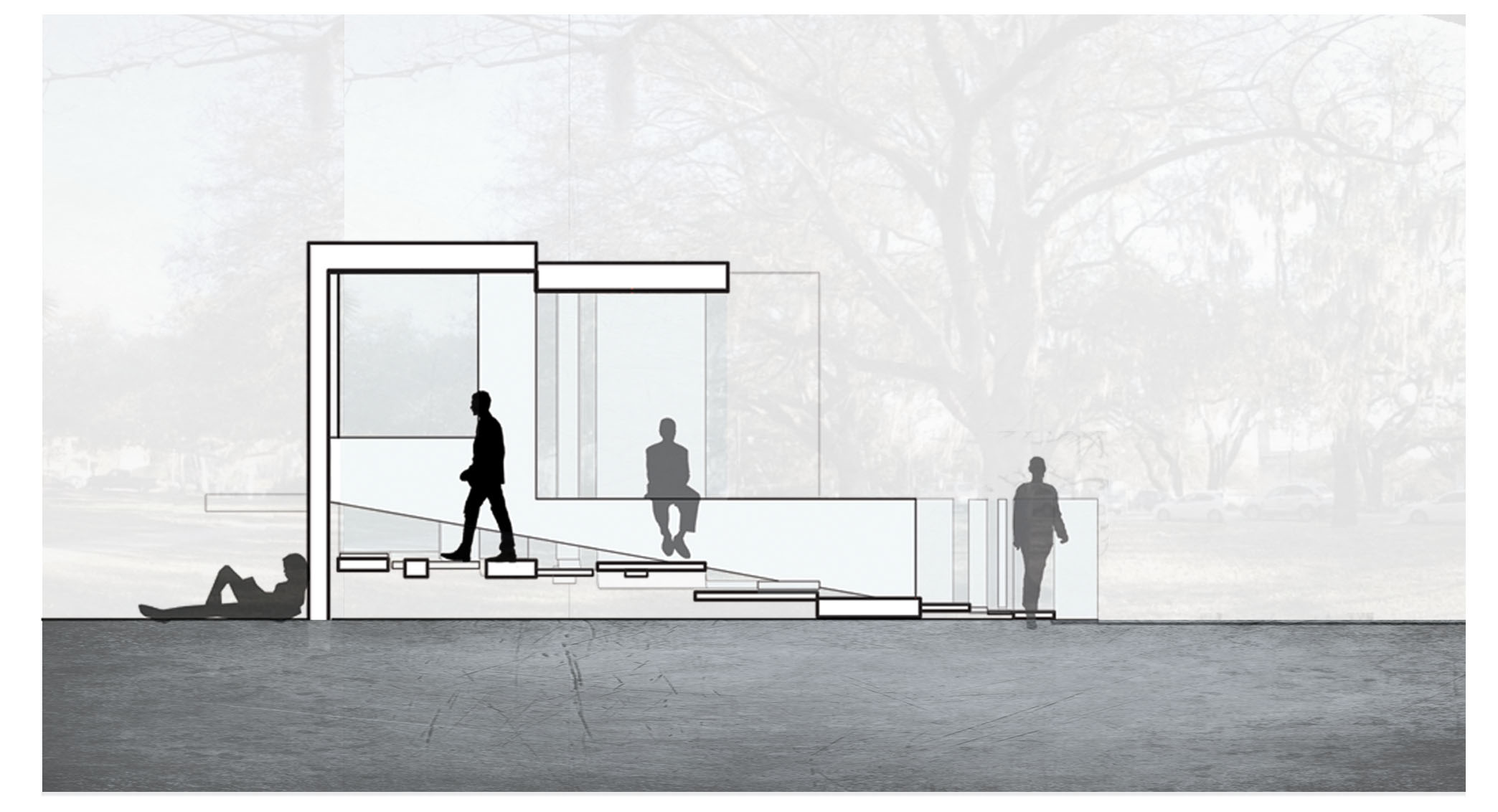

[1] section facing south

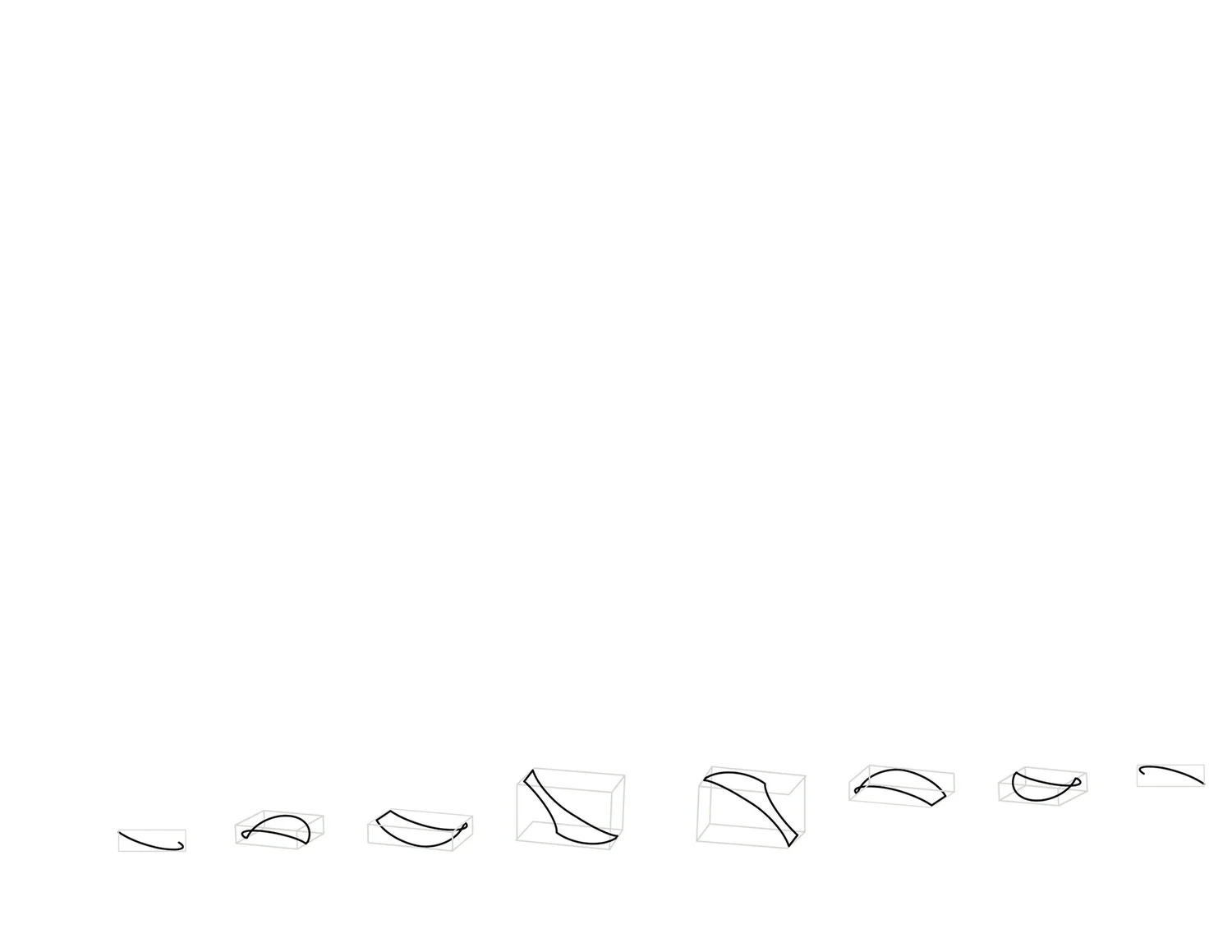

[2] evolution of thermal bi-metal attachment

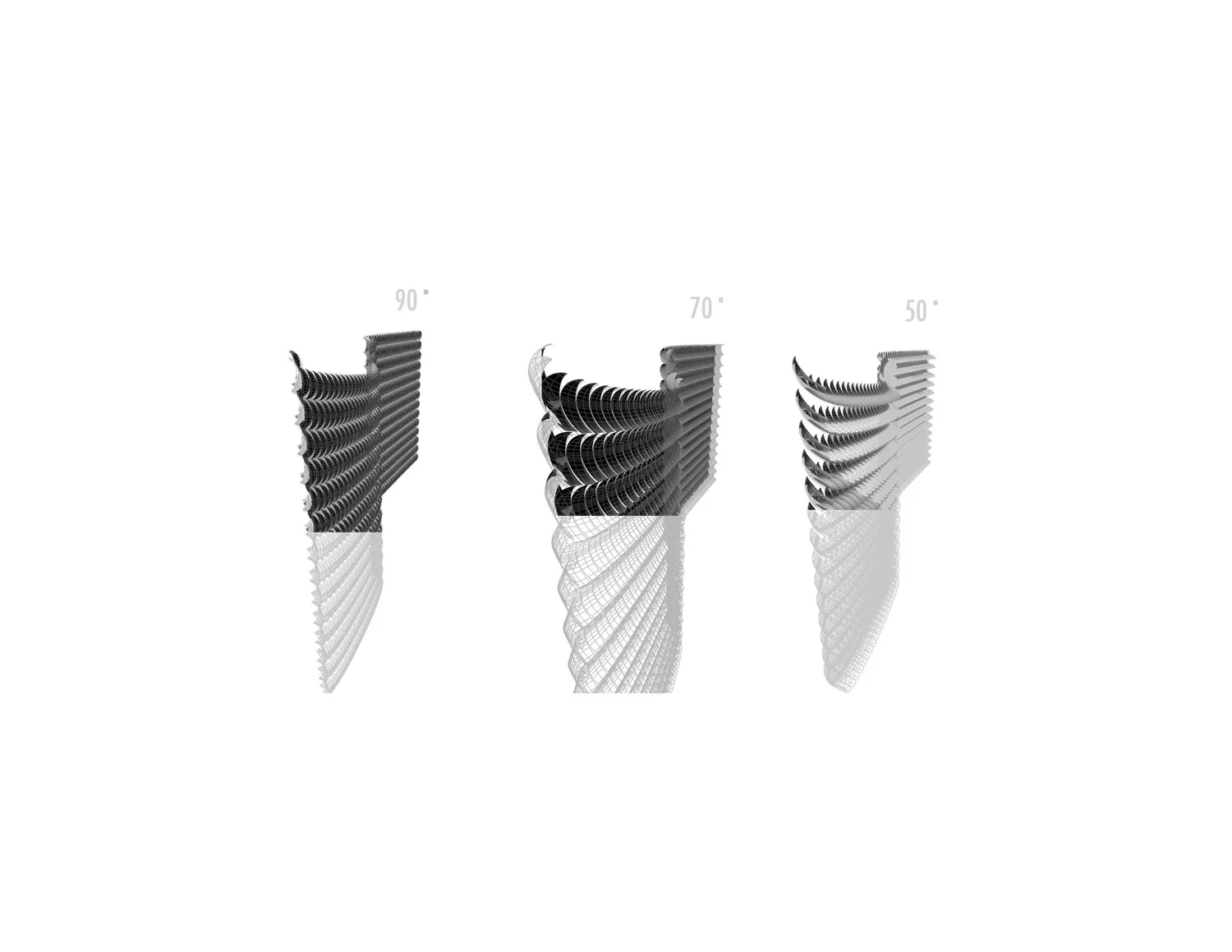

[3-4] temperature evolution: the movement of the panels demonstrated by moments at different temperatures ranging from cool to warm

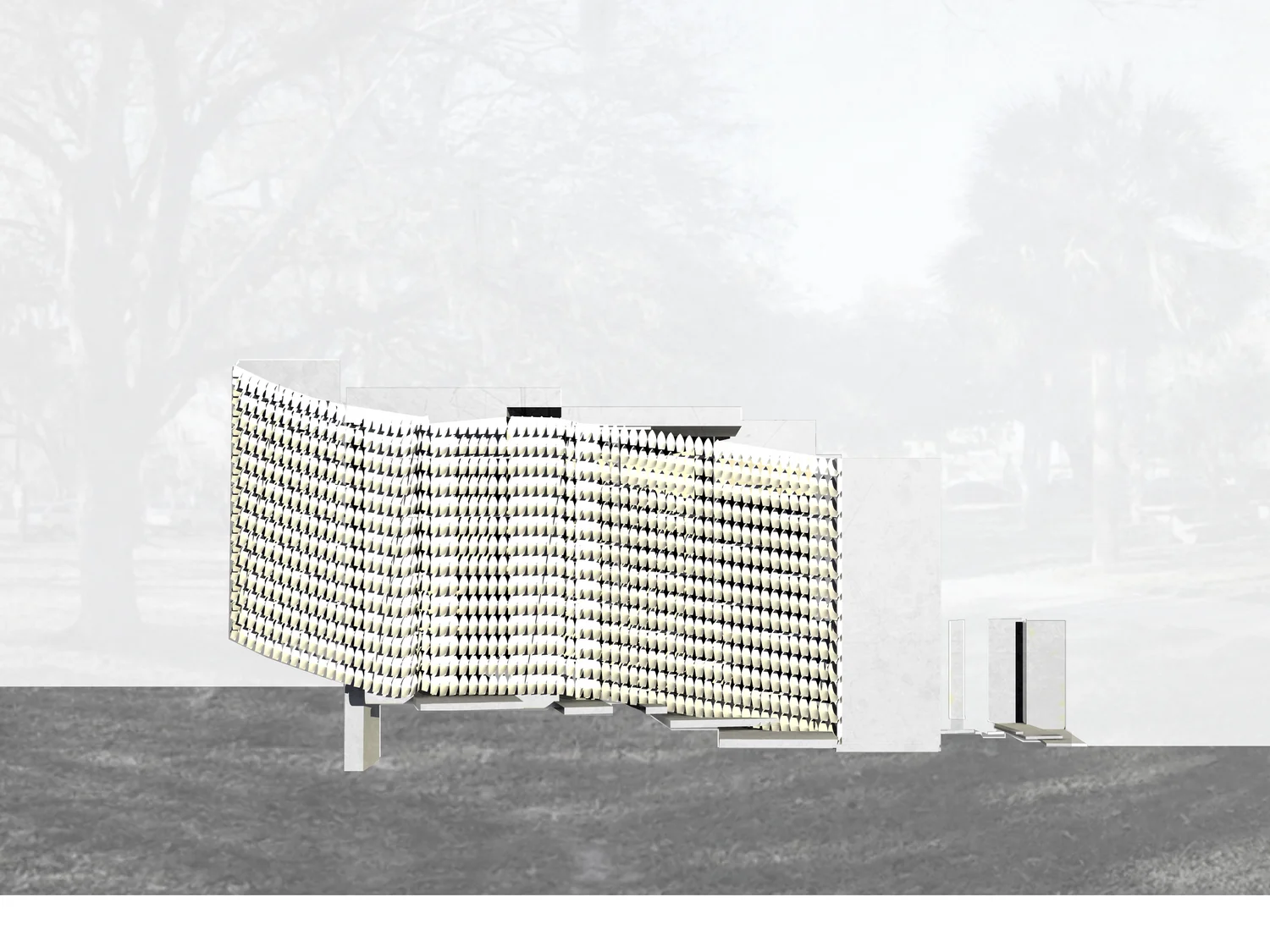

[5] east elevation

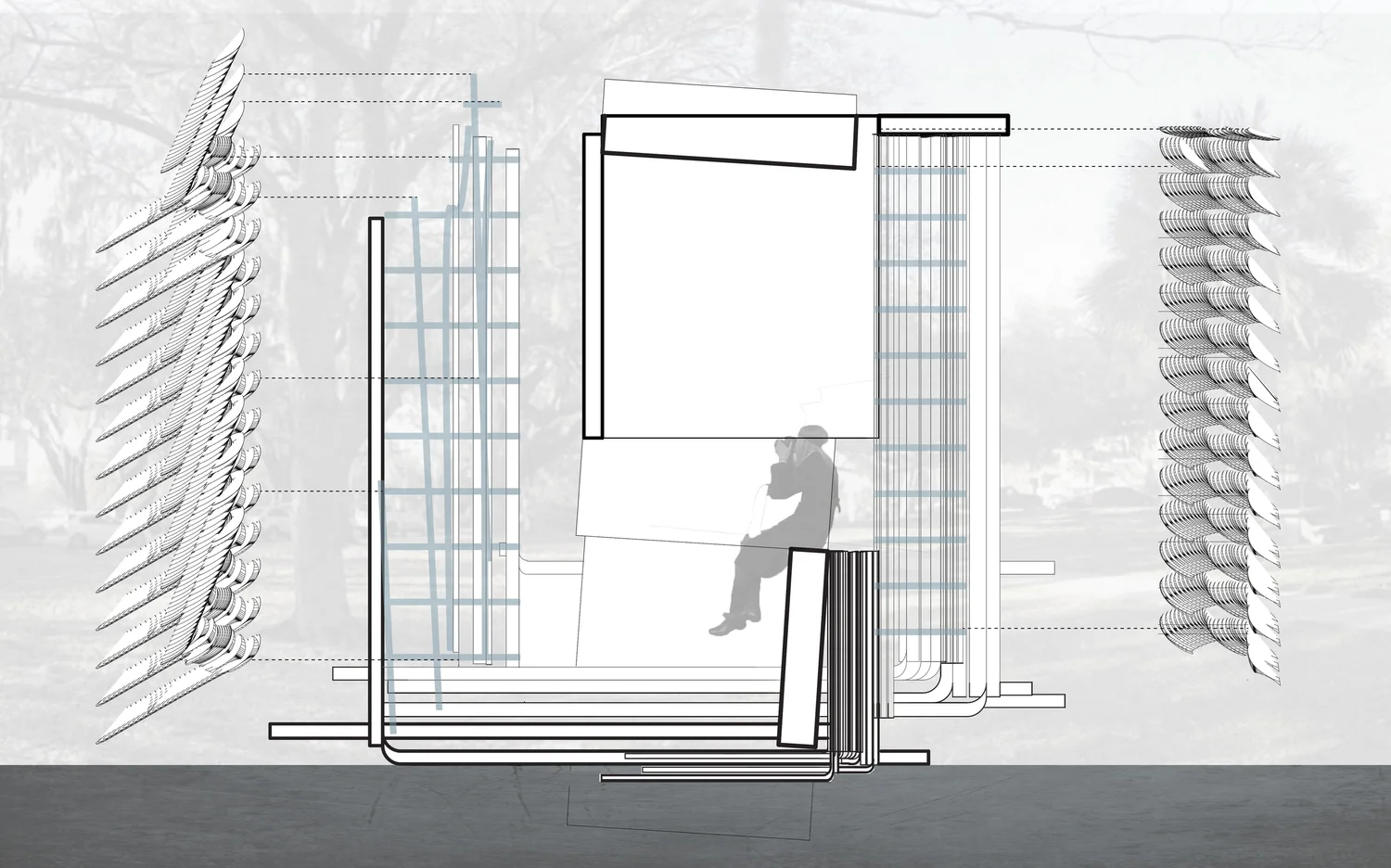

[6] longitudinal section

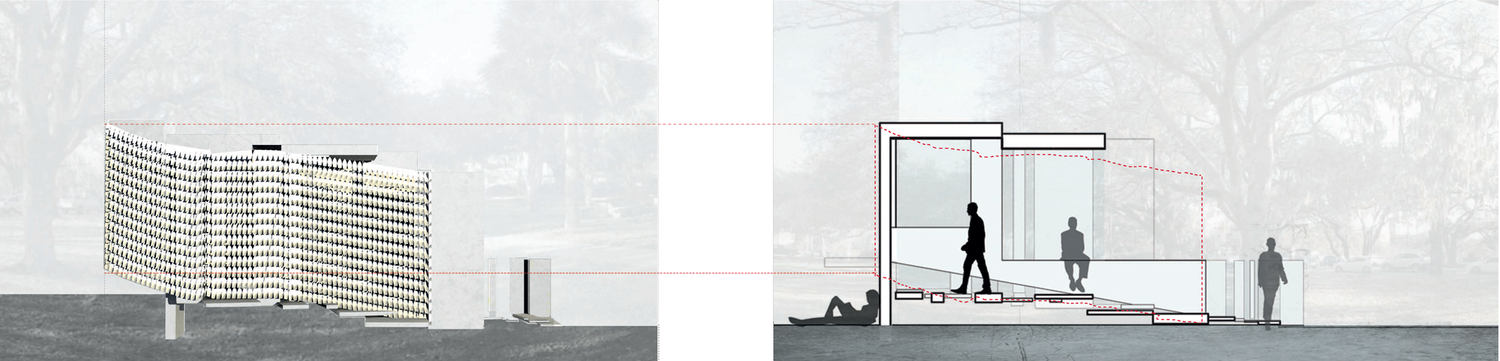

[7] places for shade:
revealing the section from the elevation

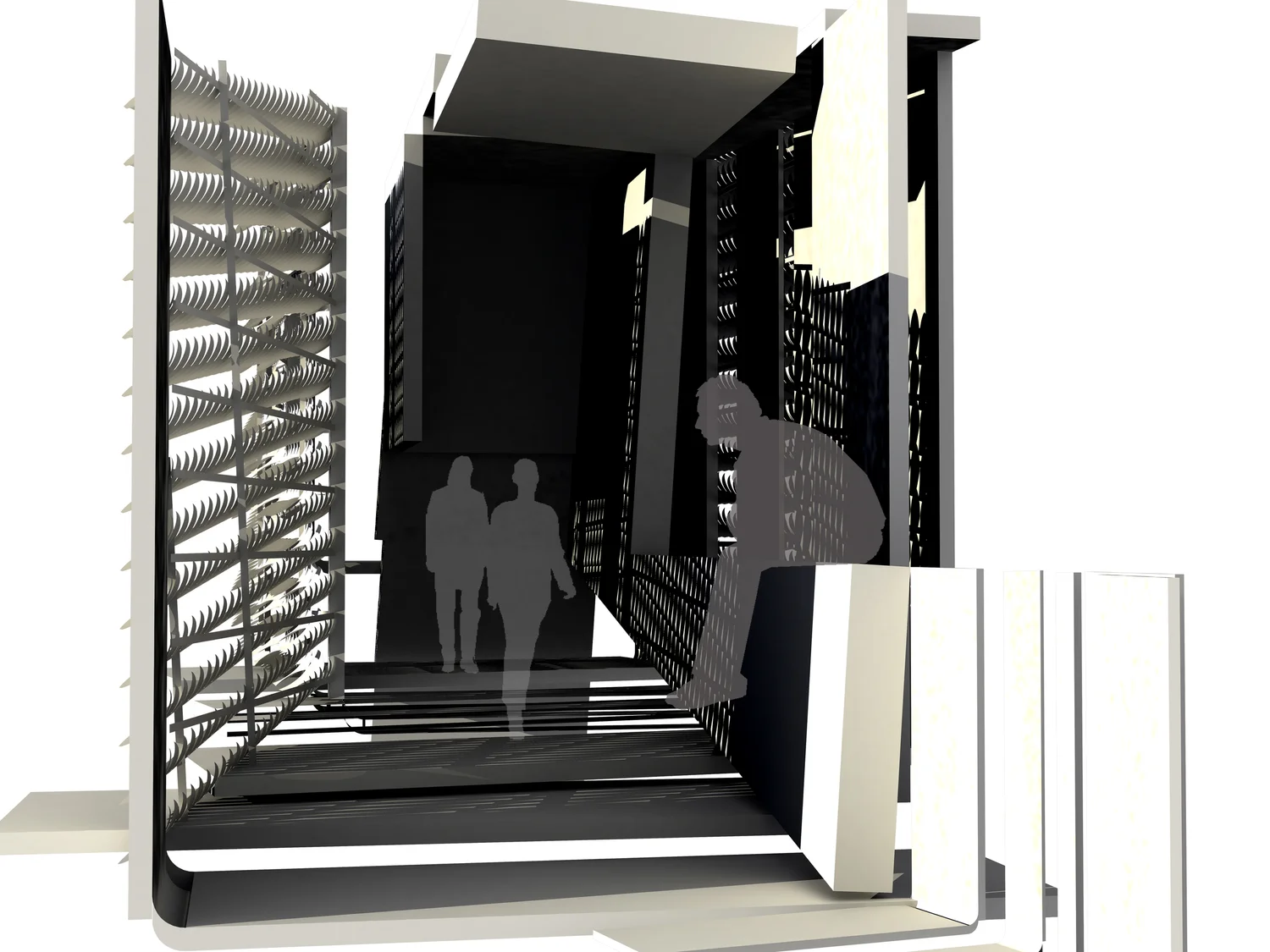

[8] interior shade and light:
view of interior with panels partially opened for air flow and shade
[9] axonometric view of pavilion
a north facing pavilion relies on eastern and western facing panels made of thermal bi-metal plates that adapt to the change in temperature and differentiation of heat coefficients. when the temperature is coolest, the panels are extended to access greater amounts of light; when the temperature is warmest, the panels curl inward to contain shade---the pavillion stays shaded while still allowing air flow.
